Wire Rope DP8K

  • Ordinary right hand lay
  • Ordinary left hand lay
  • Galvanized
  • Compacted strands symbol
  • Not to be used with swivel symbol

Features:
- Very high breaking strength and provides good structural stability.
- Excellent spooling on the drum.
- Very flexible rope construction with high abrasion resistance and good service life.

ISO 4309 Rope Category No: 8x12 RCN.03, 8x17 RCN.05, 8x26 RCN.09, 8x31 RCN.11,

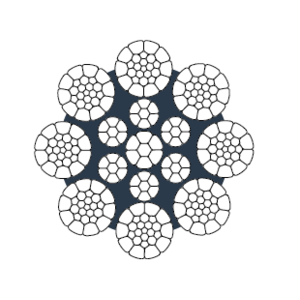

  • Rope construction: 8 compacted strands closed in a parallel lay together with the inner core strands.
  • Marking: According to standard
  • Standard: EN 12385-4
    AS 3569
  • Note: Due to its particular full unilay parallel closing (outer/inner strands), this rope is very sensible to the rotation and fleet angle (cannot be used when a fleet angle is >1º30).
  • Fill factor: 0.71
  • RCN: 03
