Steel Wire Rope ROPETEX S49

Ropetex
  • Not for lifting
  • Ordinary right hand lay
  • Galvanized
  • Not to be used with swivel symbol

ROPETEX S49 is a wire rope for general purposes like hanging signs, control and signaling devices, but not for lifting. It's most used in small diameters up to 6 mm. ROPETEX S49 is equipped with a Steel Core (WSC).

ROPETEX S42 is the same rope but has a Fibre Core (FC) and is therefore more flexible.

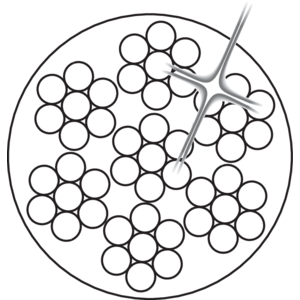

  • Rope construction: 6x7-WSC (7x7)
  • Marking: According to standard
  • Temperature range: -40°C up to +200°C, for operating temperatures between 100°C and 200°C reduce MBF by minus 10 %.
  • Standard: EN 12385-4
    AS 3569
  • Warning: Not to be used for lifting purposes
  • Fill factor: 0,55
Australian Standard: AS 3569
