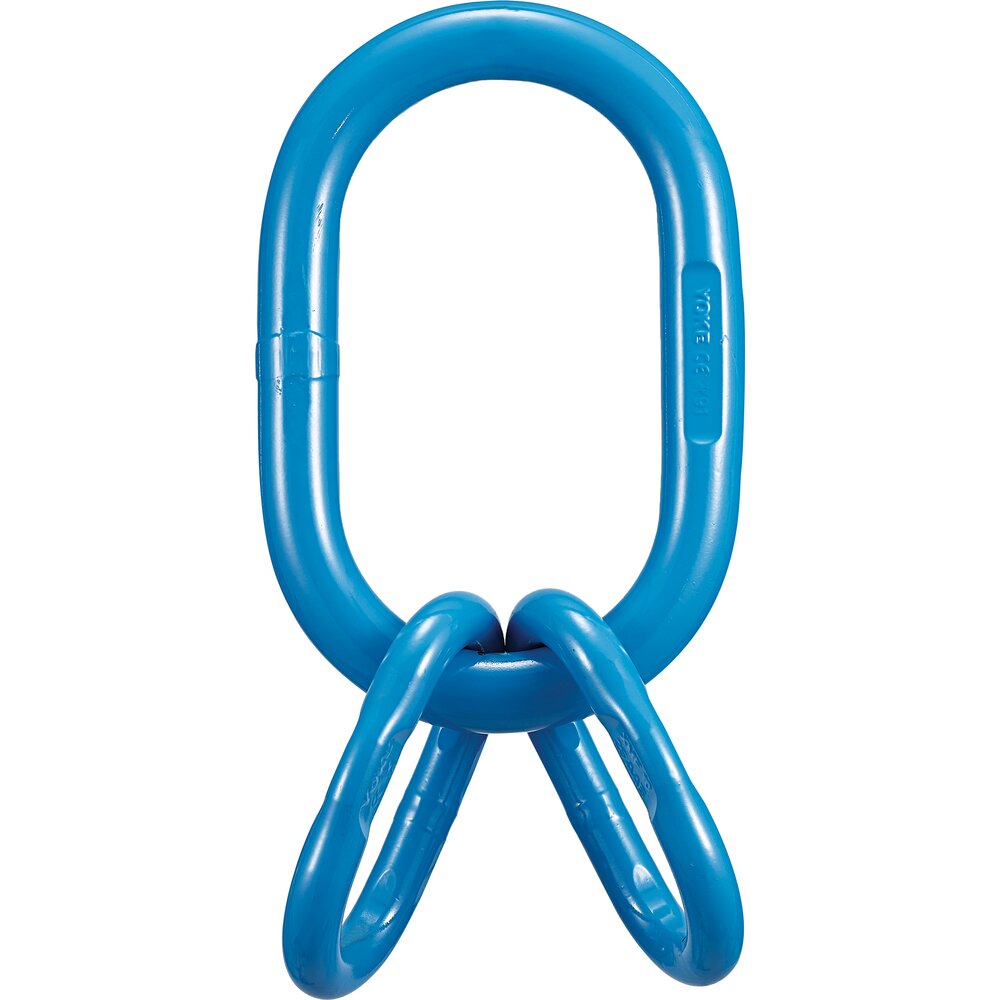

Enlarged Welded Master Link Assembly X-007

Welded Master Link designed for 3-4 legs Wire Rope and Chain Slings.

At least 25% greater WLL than traditional Grade 8 products.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured. Fatigue rated to 20,000 cycles at 1.5 times the WLL.

Show more

Product number:

Welded Master Link designed for 3-4 legs Wire Rope and Chain Slings.

At least 25% greater WLL than traditional Grade 8 products.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured. Fatigue rated to 20,000 cycles at 1.5 times the WLL.

  • Material: Quenched and Tempered Alloy Steel.
  • Marking: According to standard, CE-marked, Type, manufacturer ID, traceability.
  • Temperature range: -40° up to +200°C (without reduction in WLL).
  • Finish: Blue painted
  • Standard: EN 1677-4
    AS 3776
  • Safety factor: 5:1

After click on the “Show table” button, you will see the table with all technical details about the product.

Assembled with

AD-19  + 2 AD-161
AD-251  + 2 AD-19
AD-28  + 2 AD-22
AD-32  + 2 AD-25
AD-361  + 2 AD-281
AD-40  + 2 AD-32
AD-45  + 2 AD-36
AD-50  + 2 AD-401
AD-60  + 2 AD-50
AD-70  + 2 AD-601
AD-90  + 2 AD-701
