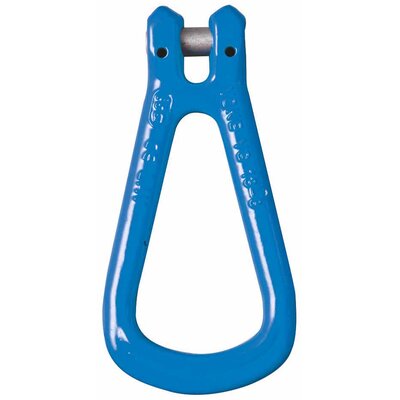

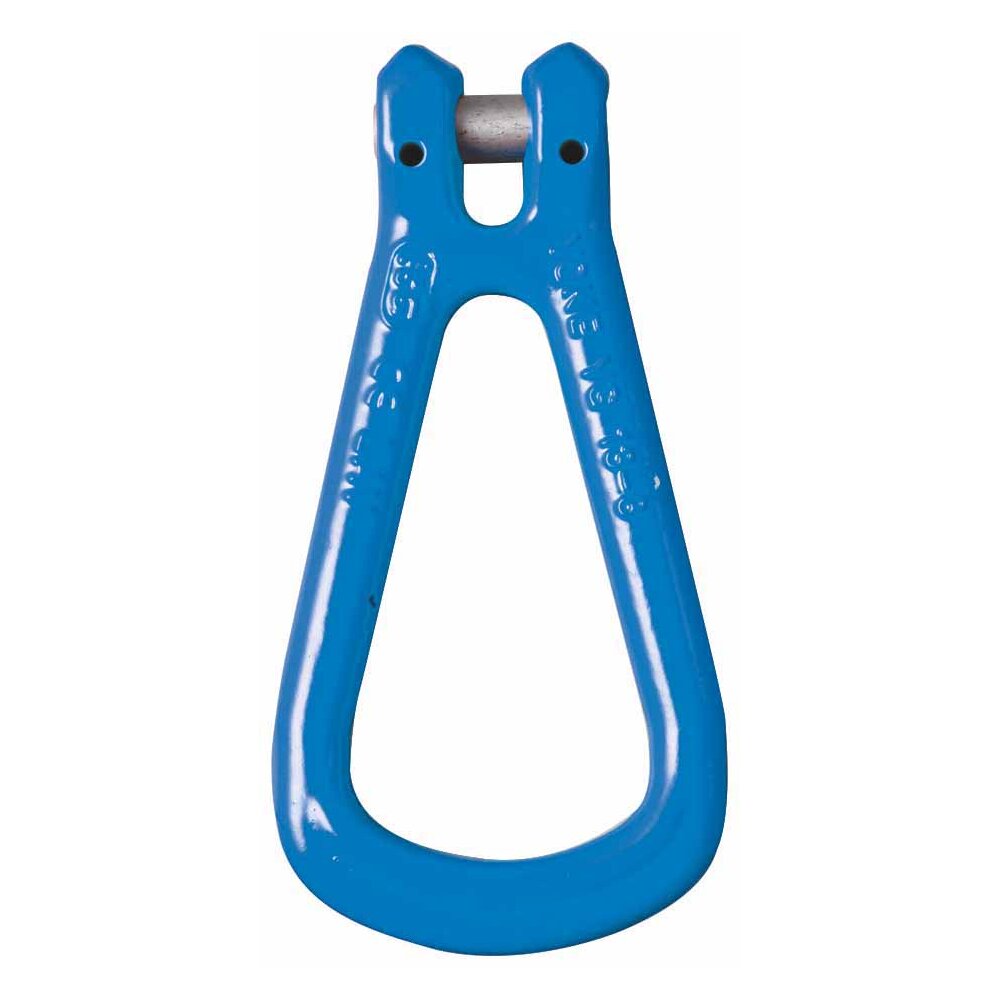

Clevis Masterlink X-059

  • At least 25% greater WLL than traditional Grade 8 products.
  • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL.



When fitting G10 components are added to G8 chain, the sling is rated at G8 WLL.

Show more

Product number:
  • At least 25% greater WLL than traditional Grade 8 products.
  • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL.



When fitting G10 components are added to G8 chain, the sling is rated at G8 WLL.

  • Material: Quenched and Tempered Alloy Steel.
  • Marking: According to standard, CE-marked, Type, manufacturer ID, traceability.
  • Temperature range: -40° up to +200°C (without reduction in WLL).
  • Finish: Blue painted.
  • Standard: EN 1677-4
    AS 3776
  • Safety factor: 4:1
  • Grade: 10
