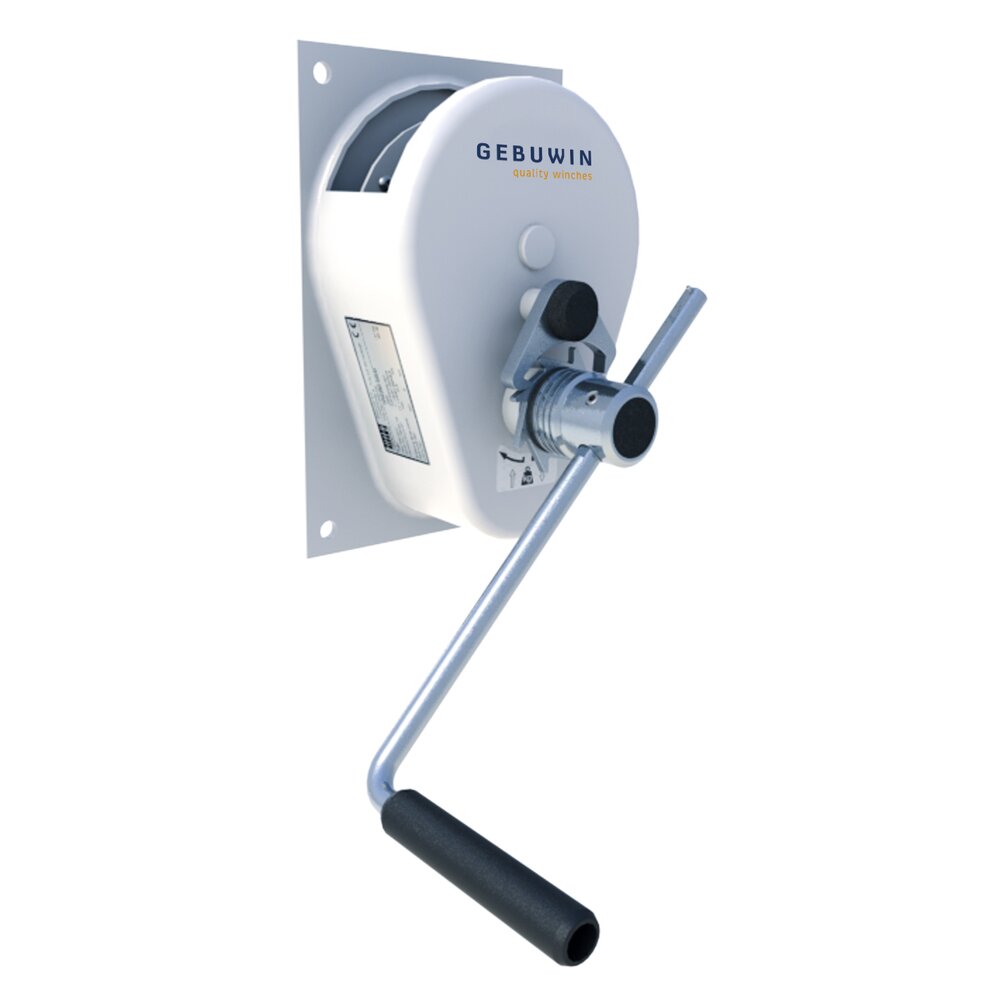

Spur Gear Hand Winch TL300-600 Painted

This convenient spur gear winch excels by its speed. It is equipped with a load-pressure brake with a double ratchet system and a semi-closed housing.

  • Robust and safe lifting and pulling winch
  • Load pressure brake with double ratchet system for safe stable hold of the load in any position
  • C

Show more

Part code:

This convenient spur gear winch excels by its speed. It is equipped with a load-pressure brake with a double ratchet system and a semi-closed housing.

  • Robust and safe lifting and pulling winch
  • Load pressure brake with double ratchet system for safe stable hold of the load in any position
  • Cable outlet upwards
  • Adjustable crank
  • Suitable for wall mounting
  • 1 layer of paint

Options:

  • Zinc-plated finish 6 - 8 micron (EV)
  • 2 layers of paint (2L)
  • ATEX certified zone 2 and 22 (EX)
    CE II 3G Ex IIC T4 Gc, -20°C<T amb <+70°C
    CE II 3D Ex IIIC T135°C Dc, -20°C<T amb <+70°C
  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -20°C up to +70°C
  • Finish: Painted, grey
  • Standard: EN 13157
  • Note: The cable must be ordered separately, ask for more information about our sales
  • Safety factor: 4:1
