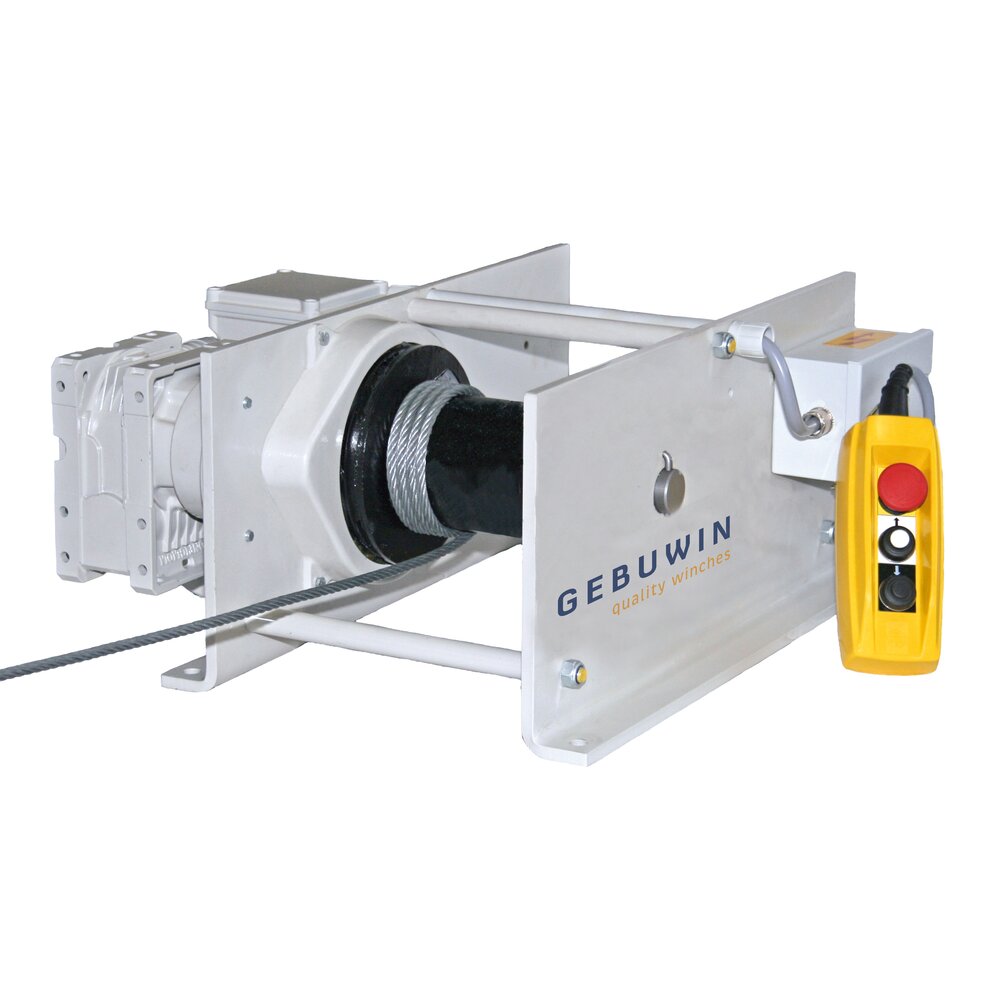

This electric winch is part of Gebuwin’s well-known product range. A very robust and safe winch. This winch is suitable for both lifting and pulling and has an IP55 rating. It is a real industrial winch with its high FEM values of at least 1CM or higher.
- Winch suitable for lifting (with included limit switch and low voltage control)
- Available in 400V three phase
- Maintenance free ball bearings
- Protection classification IP55, insulation class B
- Standard overload protection starting from 1000 kg
- Standard 1 meter pendant control switch
- Operation mode S3-40% - 120 c/h
- 1 layer of paint
Options:
- For pulling applications (without included limit switch and low voltage control)
- Available in 230V single phase
- Increase of cable storage per 10 m up to 90m
- Grooved drum (GD)
- Multiple cable drum compartments (XD)
- Disengaging clutch (except for 125 kg model)
- Wall mounted control switch
- Low voltage control 42 V control
- Double speed
- Radio control (RC)
- Frequency control
- Protection classification up to IP66
- ATEX certified (EX)
- Material: Steel
- Marking: CE-marked
- Temperature range: - 20°C up to + 40°C
- Finish: Painted, light grey
- Note: Steel wire ropes must be ordered separately
