TRS Round sling - Standard
- Design: Load carrying yarn covered with extra strong SINGLE sleeve.
- Colors: Sleeve color coded according to RAL codes shown in below ”Partcode, RAL code & Load diagram”.
- Chemical resistance: Resistant to most acids, but not strong alkalis.
- Stretch with working load: 2-3%.
- Material: Polyester (PES), high tenacity multifilament min 60cN/tex.
- Marking: The slings are provided with a blue label and a white warning label.
- Temperature range: Between -40°C - +100°C.
- Safety factor: 7:1
Webbing slings
Load diagram webbing slings with eyes
| Color | RAL | Webbing width | Working load limit (WLL) in tons | |||||
|---|---|---|---|---|---|---|---|---|
|
|
|
|
|||||
| mm | Straight pull | Choke hitch | Basket hitch | |||||
| 0° | 60° | 90° | 120° | |||||

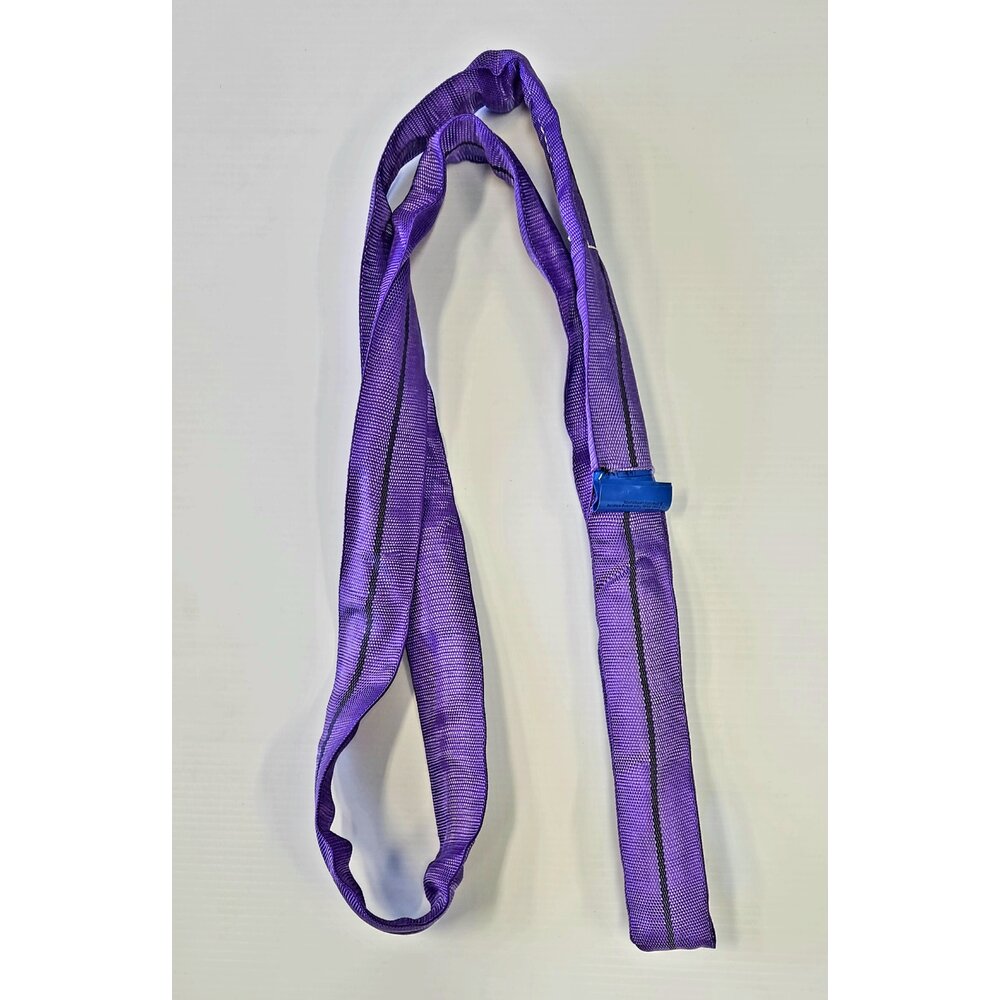

| Violet | 4005 | 30 | 1 | 0.8 | 2 | 1,7 | 1,4 | 1 |
| Green | 6018 | 60 | 2 | 1.6 | 4 | 3,4 | 2,8 | 2 |

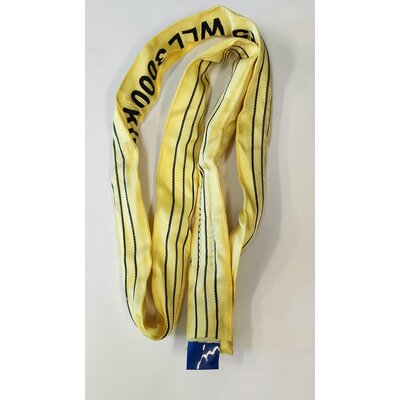

| Yellow | 1018 | 90 | 3 | 2.4 | 6 | 5,1 | 4,2 | 3 |
| Grey | 7001 | 120 | 4 | 3.2 | 8 | 6,9 | 5,6 | 4 |
| Red | 3020 | 150 | 5 | 4 | 10 | 8,6 | 7,0 | 5 |

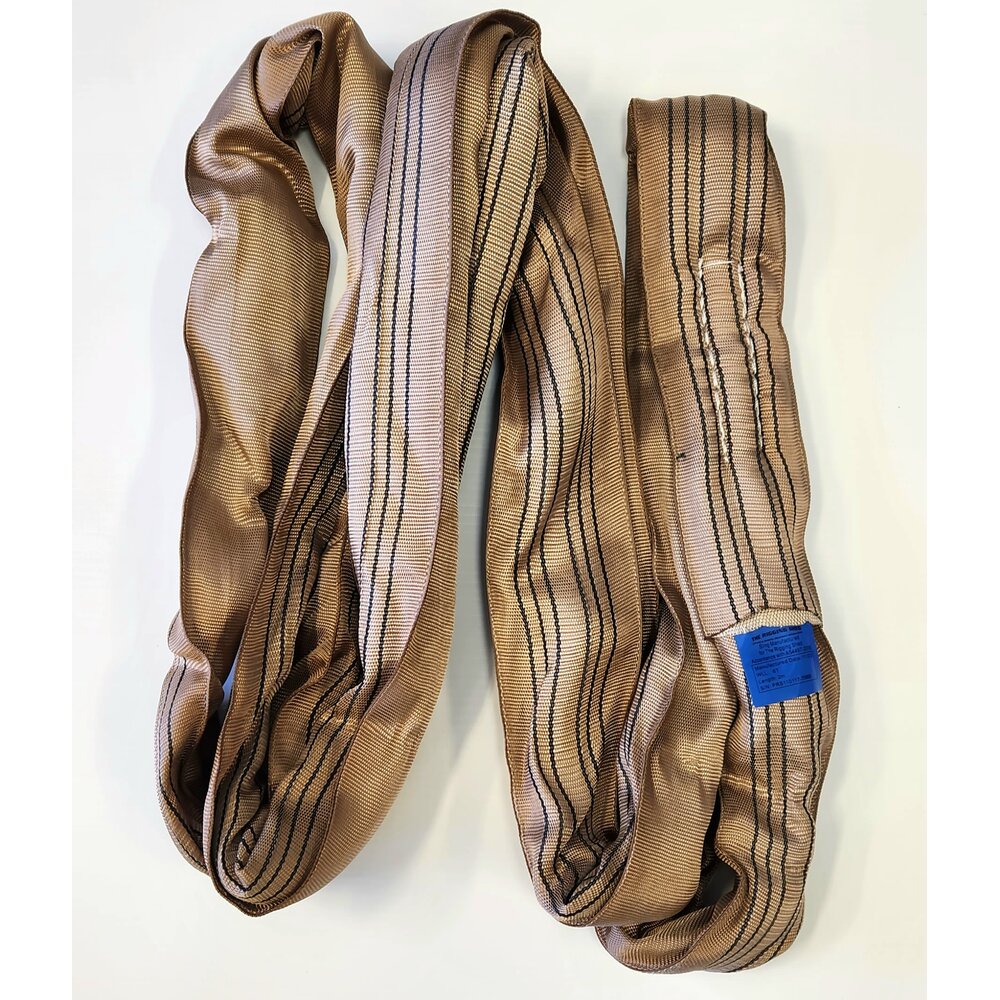

| Brown | 8003 | 180 | 6 | 4.8 | 12 | 10,3 | 8,4 | 6 |
| Blue | 5015 | 240 | 8 | 6.4 | 16 | 13,8 | 11,2 | 8 |
| Orange | 2009 | 300 | 10 | 8 | 20 | 17,3 | 14,0 | 10 |
| Orange | 2009 | 300 | 12 | 9.6 | 24 | 20,7 | 16,8 | 12 |
| Orange | 2009 | 240 | 15 | 12 | 30 | 25,5 | 21 | 15 |
| Orange | 2009 | 300 | 20 | 16 | 40 | 34 | 28 | 20 |
| Factor (M) | 1 | 0.8 | 2 | 1,7 | 1,4 | 1 | ||
| The last two digits with bold font in the part codes indicates the EWL: 30 means 3,0 meter. | ||||||||
