Wireless Compression Load Cell - LoadSafe

The Straightpoint Wireless Compression LoadSafe (WNI). No longer hindered by troublesome and hard to maintain cables, large scale projects can be completed in a fraction of time previously required. Multiple compression loadcells can all connect wirelessly to our range of PC software via a USB dongl

Show more

Product number:

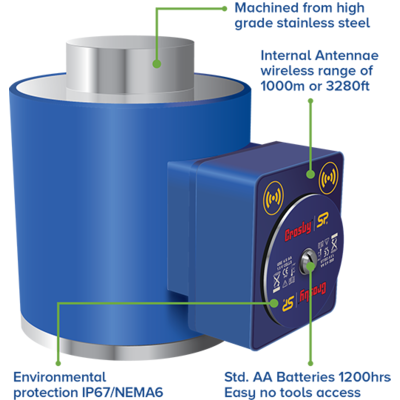

The Straightpoint Wireless Compression LoadSafe (WNI). No longer hindered by troublesome and hard to maintain cables, large scale projects can be completed in a fraction of time previously required. Multiple compression loadcells can all connect wirelessly to our range of PC software via a USB dongle, to our iOS and Android app or to our SW-HHP wireless handheld display.

Maintenance and repair costs are all but eliminated due to the absence of cables and connectors, and the product's flexibility opens the door to a large number of applications in the heavy lift, energy, defence, rigging, shipping, and general transportation sectors.

Features

  • Proprietary 2.4 GHz Wireless or Bluetooth options
  • Accuracy of 0.1% FS
  • Environmentally sealed to IP67/NEMA 6
  • Stocked capacities up to 500t
  • Industry leading wireless range up to 1000m or 3280ft
  • Internal antennae
  • ATEX & IECEx version for hazardous area zones 0, 1 & 2 available
  • Battery life of 1200hrs
  • Compact size
  • Remote on-off

Supplied with the following as standard

  • AA Batteries
  • Proof test certificate
  • Operator Manual
  • Carry/Storage Case
  • Material: 17-4PH H900 Stainless Steel. Aluminium Jacket 6000 series
  • Temperature range: -10°C up to +50°C
  • Finish: Stainless Steel – Polished. Jacket Blue Anodized to BS EN 12373-1:2001 Class 10.
  • Safety factor: 3:1
